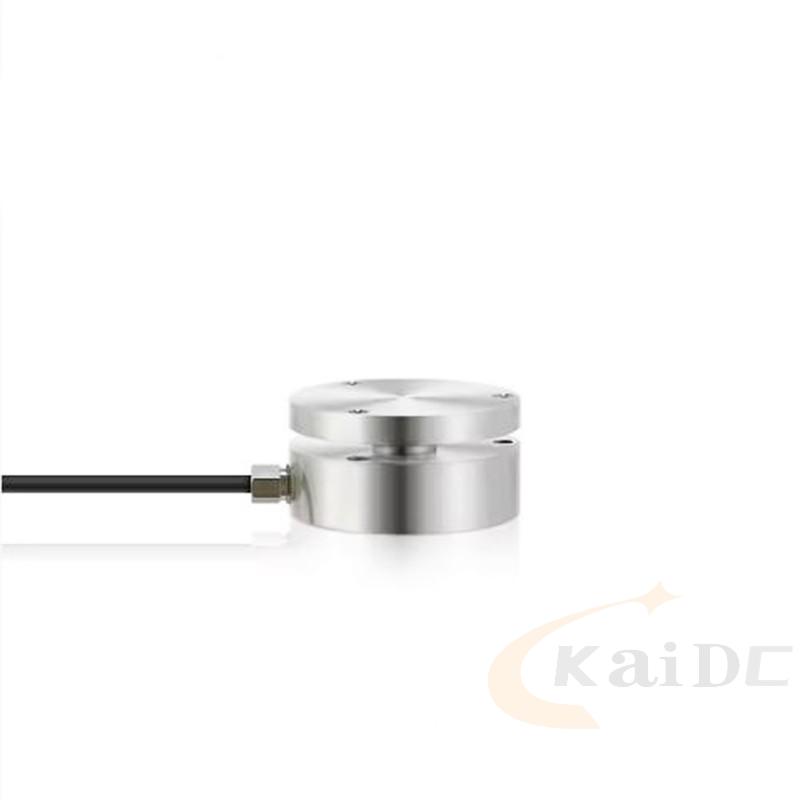

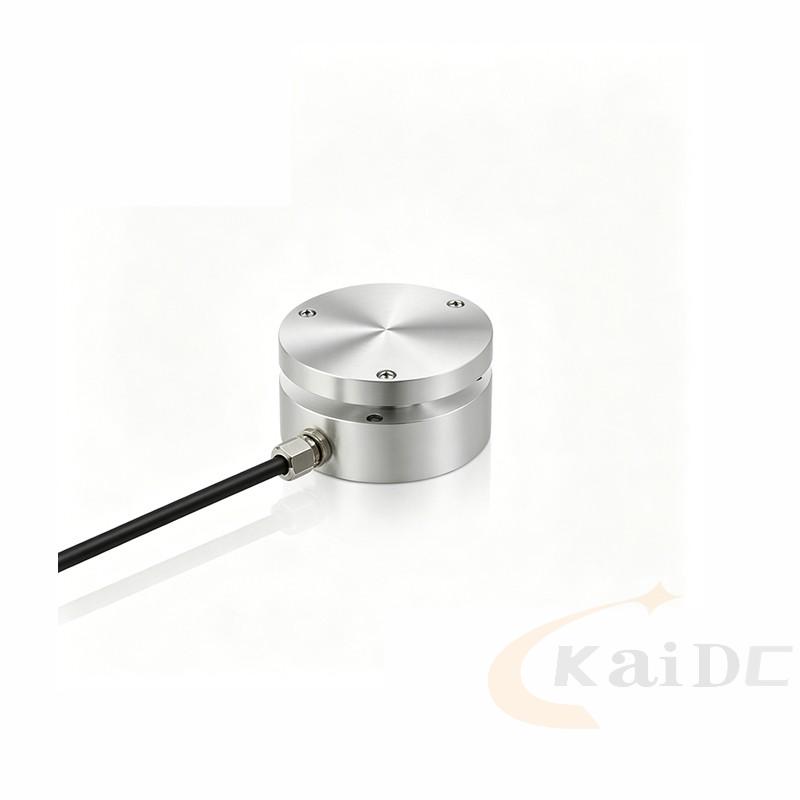

KDEV-L-C1-10/20/50/100/200/500/1000 kg Capsule load cell

Small shape, large stress area, upper and lower f l ange fi xed, stainless steel material, suitable for plane
force measurement applications, widely used in industrial R & D and other fields of measurement and
control.

Features

The structure of the diaphragm type weighing sensor is characterized by a central convex point, which is convenient for concentrated force. Usually, the force points are mostly designed with arc surfaces. In order to better concentrate stress, they are often in contact with the flat surface and the convex point during use. It can also be installed by directly fixing with screws.

Application areas:

Applicable to electronic scales such as automobile scales, track scales, platform scales, silo scales, cranes, pressure testing machines, etc.
