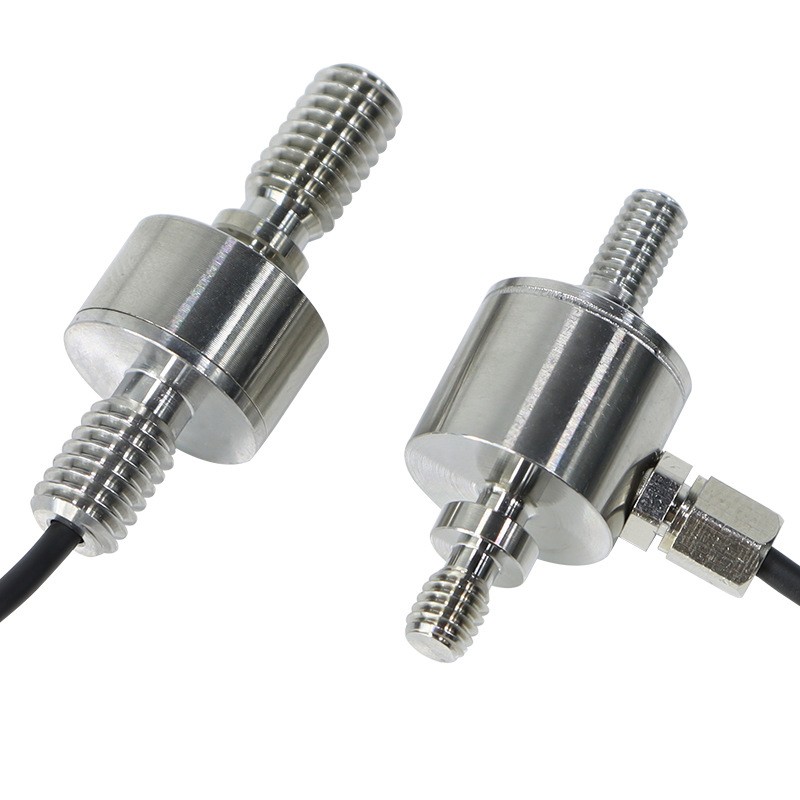

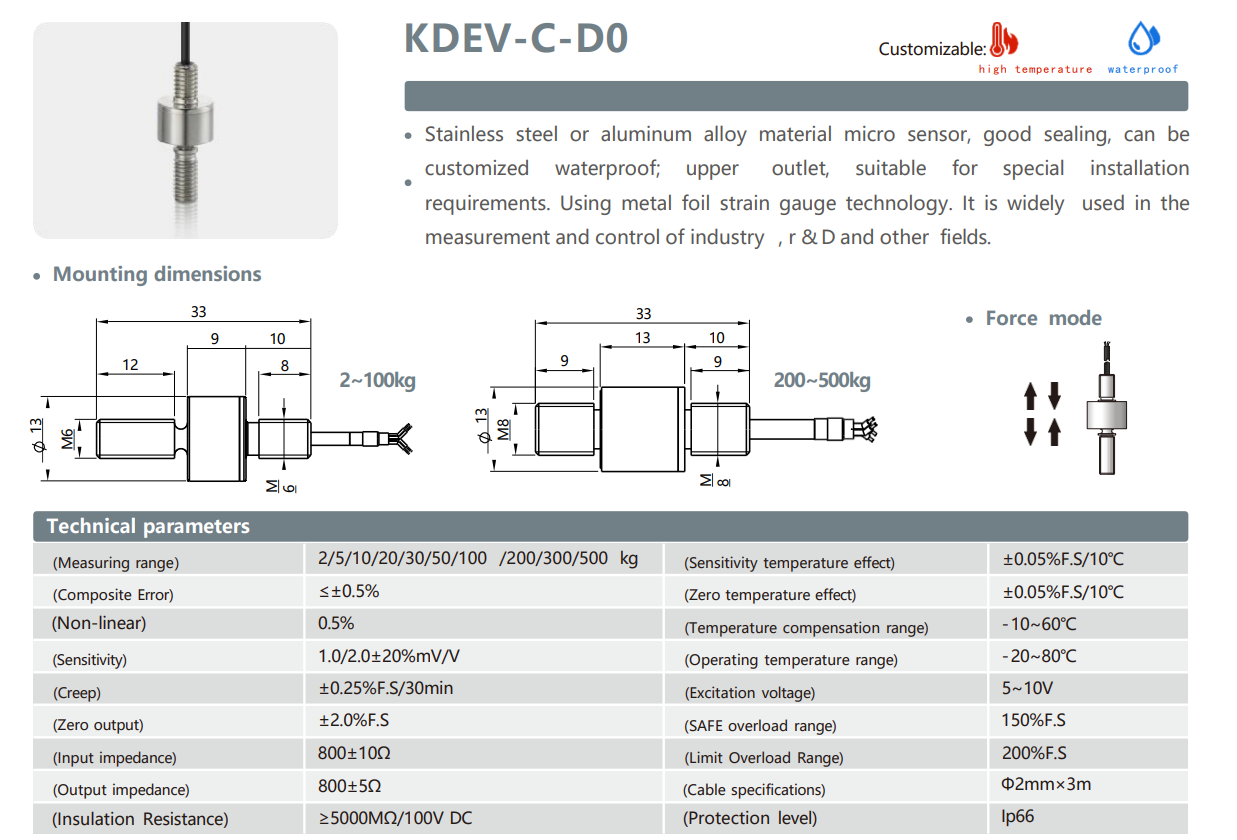

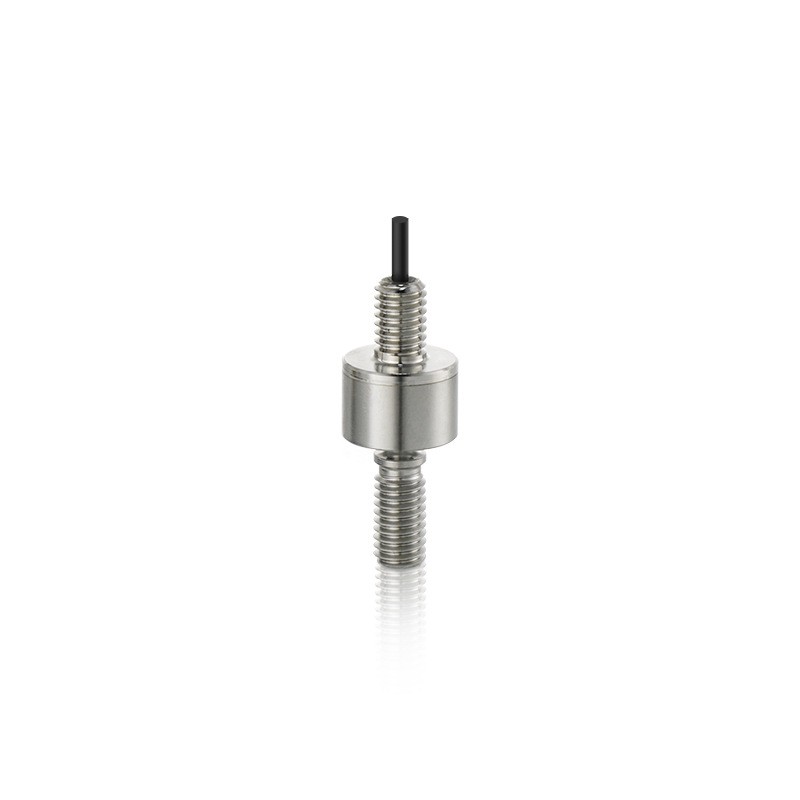

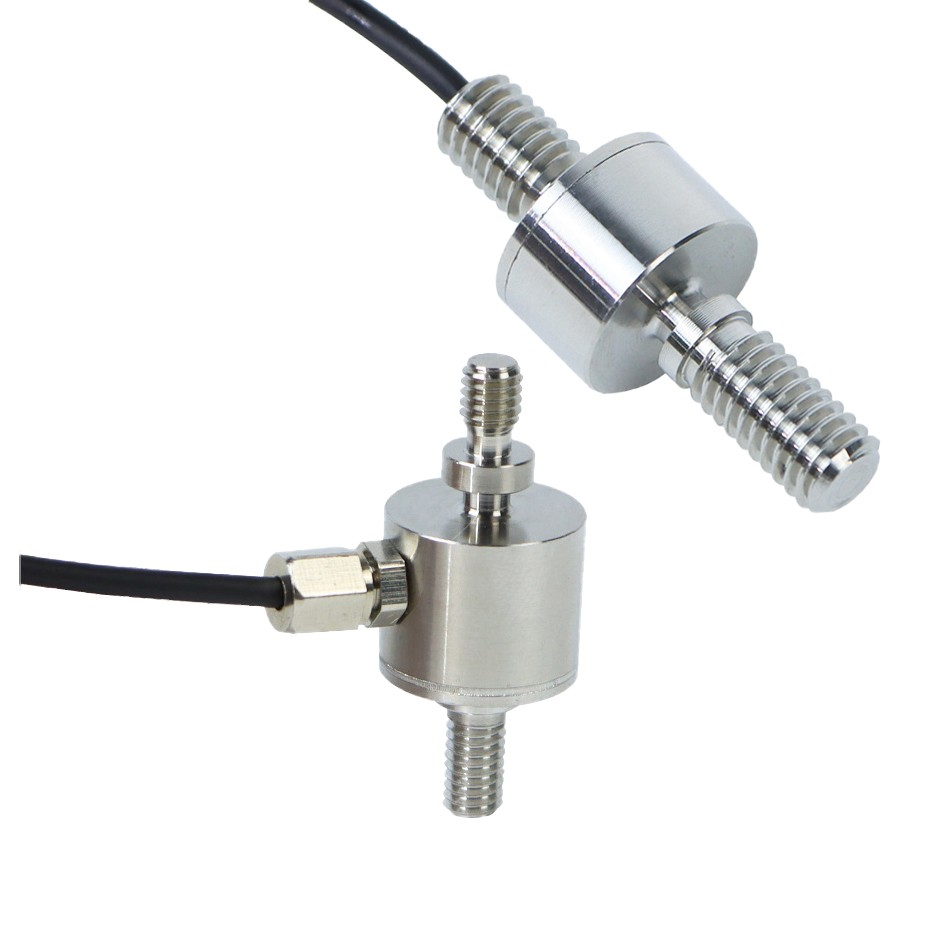

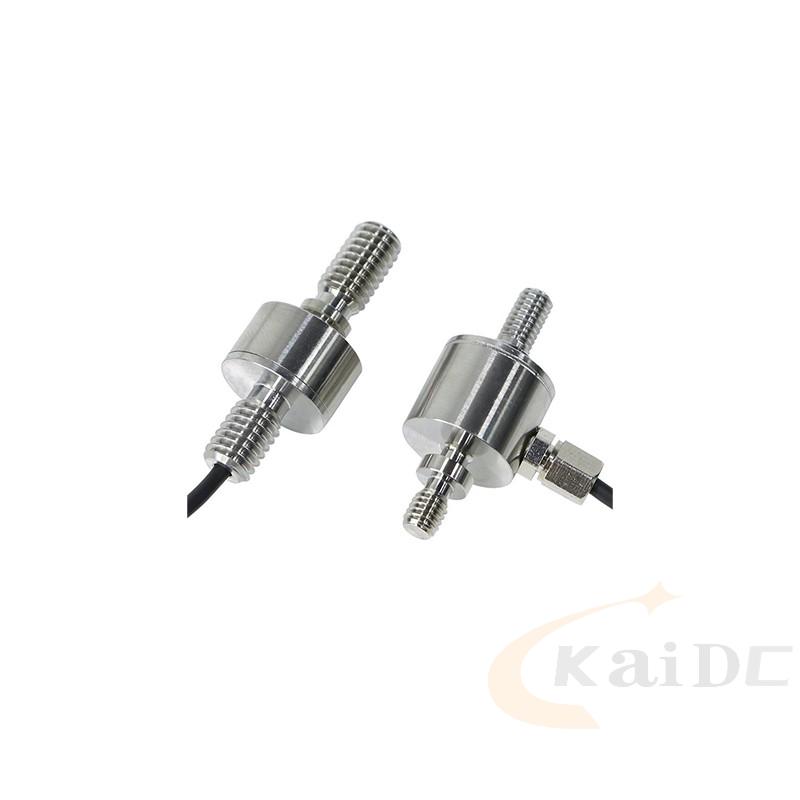

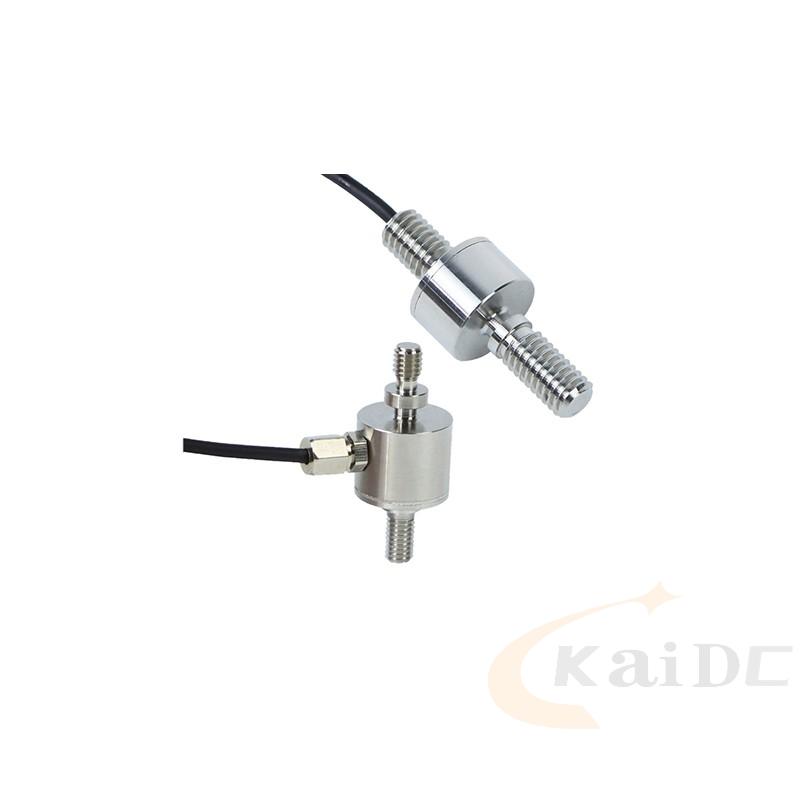

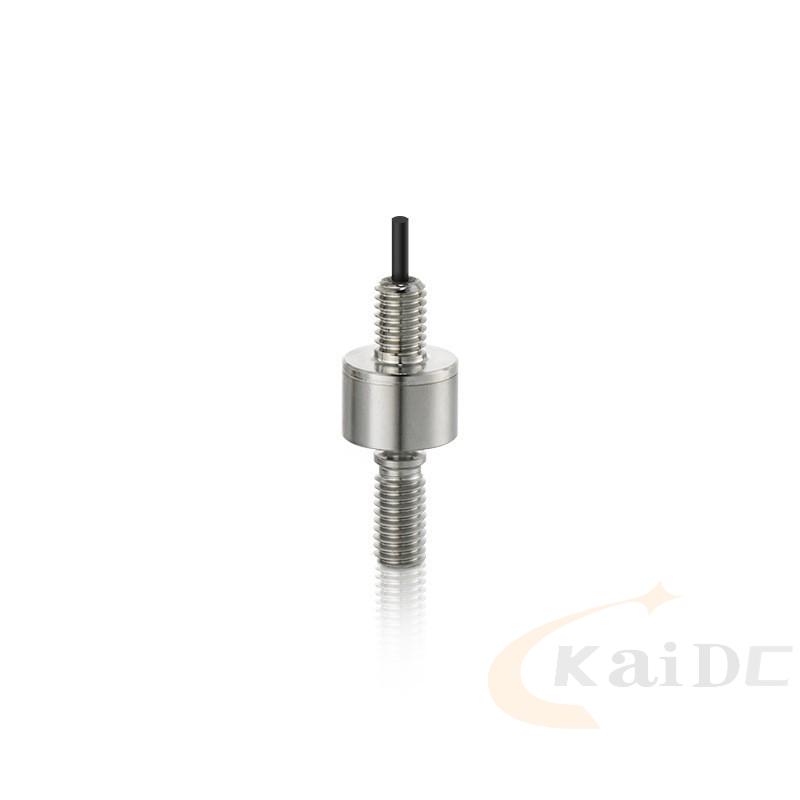

KDEV-C-D0 Column load cell 2/5/10/20/30/50/100 /200/300/500 kg

KDEV-C-D0 Column load cell 2/5/10/20/30/50/100 /200/300/500 kg

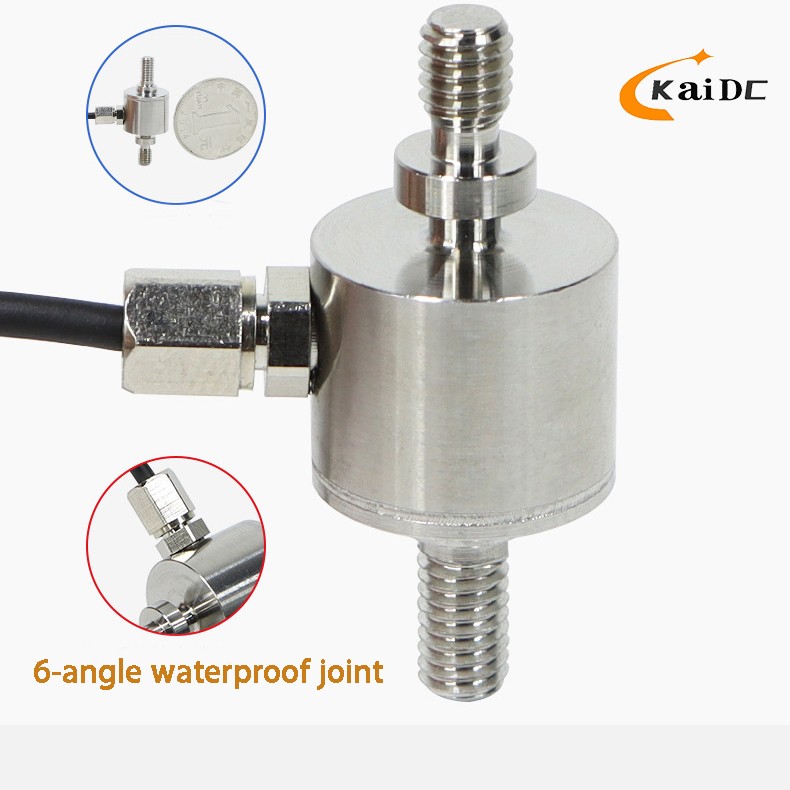

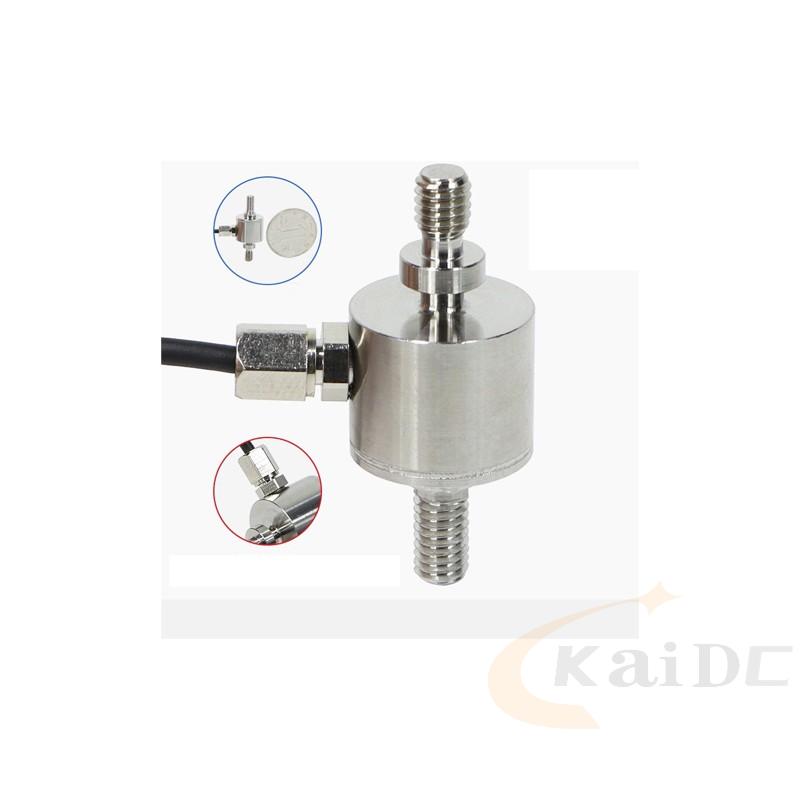

Stainless steel or aluminum alloy material micro sensor, good sealing, can be
customized waterproof; upper outlet, suitable for special installation
requirements. Using metal foil strain gauge technology. It is widely used in the
measurement and control of industry , r & D and other fields.

Features

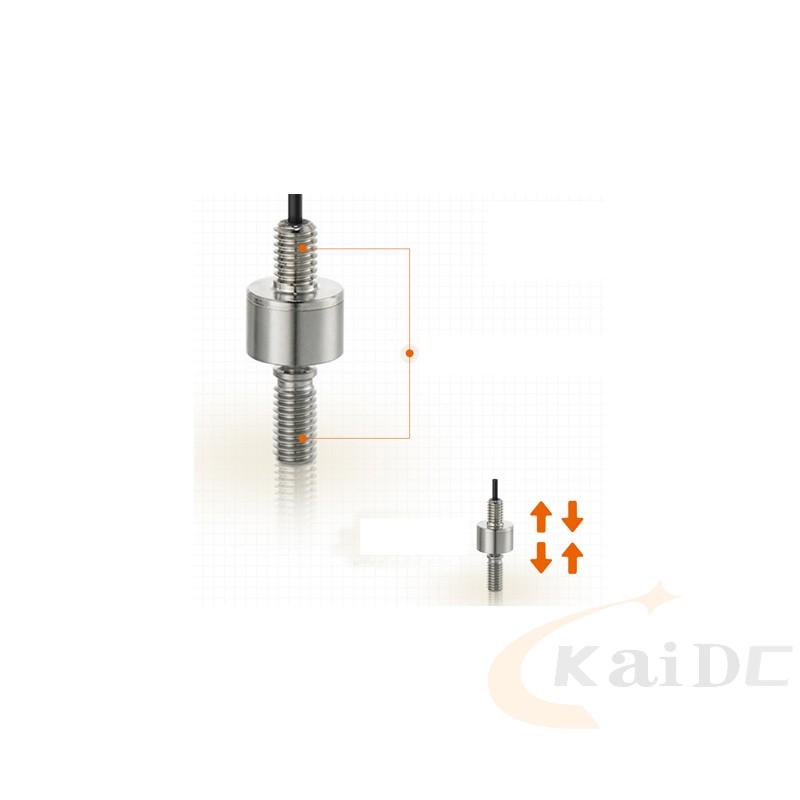

This model can be installed by screwing directly. When installing, you need to pay attention to the central displacement deformation of the sensor. When used as a tension sensor, it is best to use a soft connection, which can be connected with a universal joint. When used as a pressure sensor, one end can be fixed (usually fixed at the fixed end, and the deformed end is stressed). When fixing, pay attention to the flatness and verticality of the force axis.

Application field:

Applicable to aging test machines for 3C digital products, force detection of production lines, force value monitoring of automated assembly lines, pressure testing machines and other automation fields.
