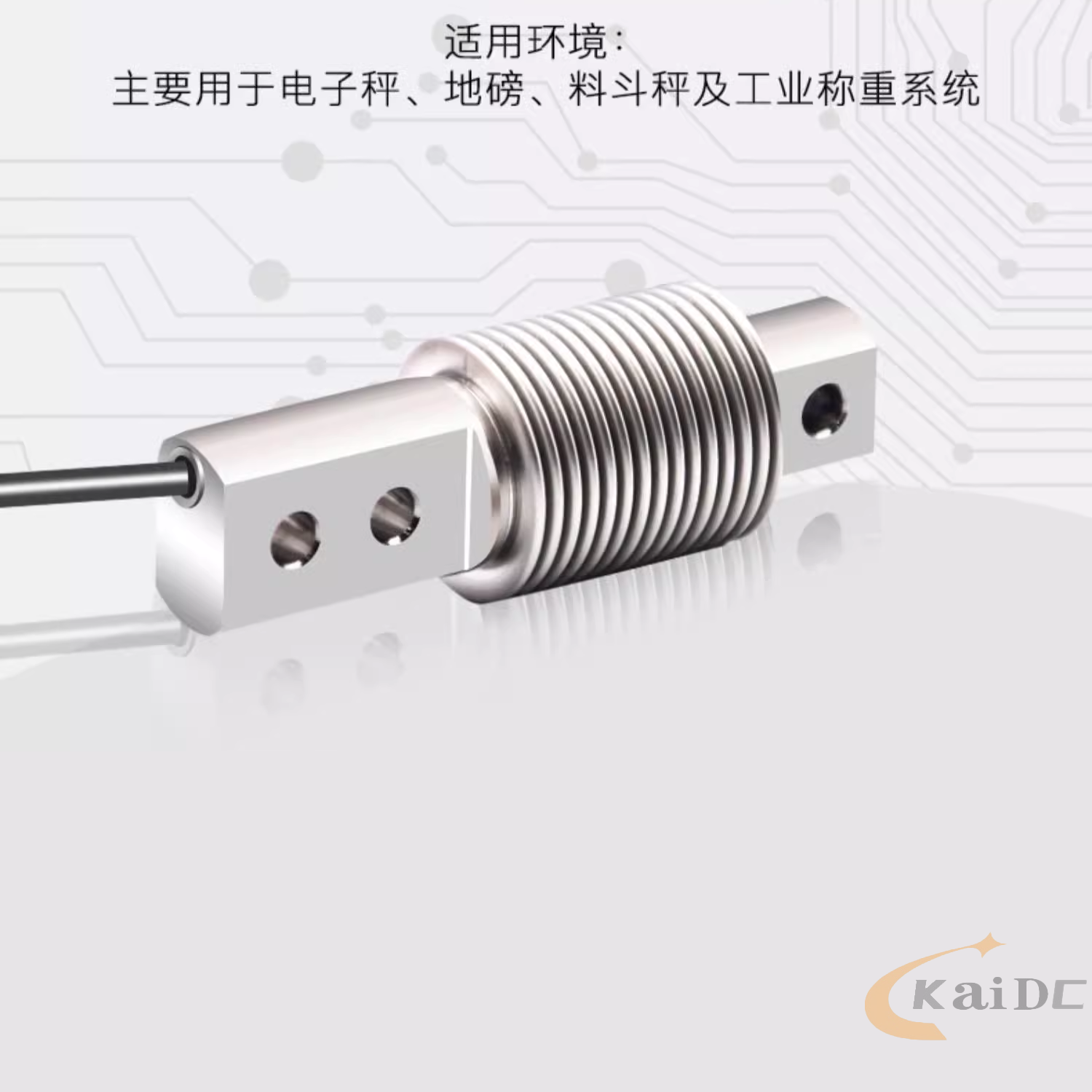

Bellows weighing sensor cantilever beam pressure weight module sensor 5/10/20/30/50/100/200/300/500kg

High precision performance

Non-linearity, hysteresis, repeatability and creep (30 minutes) are all ≤ 0.015% f.s., ensuring long-term stability and high repeatability.

The accuracy grade reaches C3, which meets the requirements of high industry standards.

Excellent temperature stability

The temperature sensitivity drift is only 0.002%F.S./℃, and the zero temperature drift is 0.003%F.S./℃.

Support temperature compensation range of -10~40℃ and working temperature range of -10~50℃, and adapt to complex environment.

Strong anti-interference and durability

The input resistance is 365 10Ω, the output resistance is 350 3Ω, the insulation resistance is ≥5000MΩ/100VDC, and the electrical performance is stable.

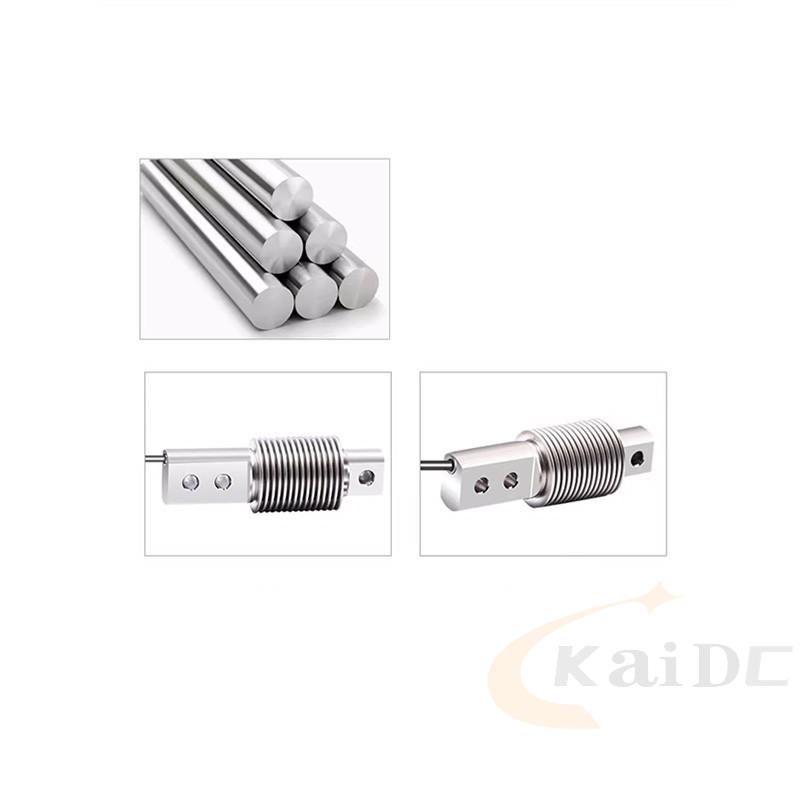

Made of stainless steel/alloy steel, it is corrosion-resistant and impact-resistant, suitable for harsh industrial environment.

Wide voltage adaptation and overload protection

The excitation voltage is 5~12V (maximum 15V), which has strong compatibility.

Safety overload is 150%F.S and limit overload is 300%F.S, providing multiple protection.

Lightweight and convenient design

The weight of a single piece is only 0.1kg, and the cable length is 3000mm (diameter Φ5), which is convenient for installation and wiring.

Professional service support

Provide professional technical support and selection guidance to ensure accurate matching requirements.

Remarks: There may be subtle differences in the material, technology and other factors, so it is recommended to consult the professional team according to the actual needs.
