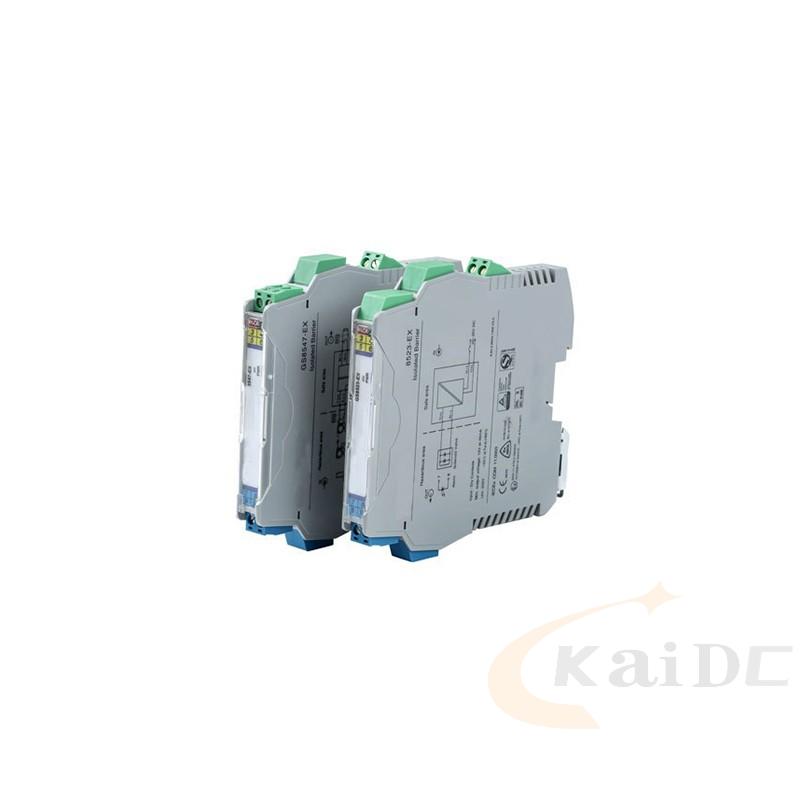

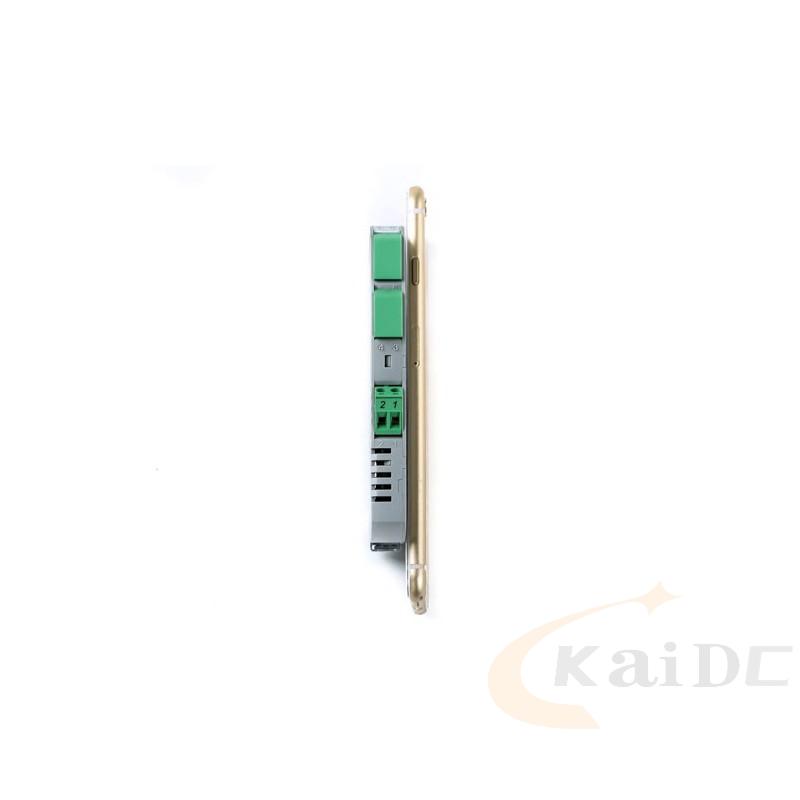

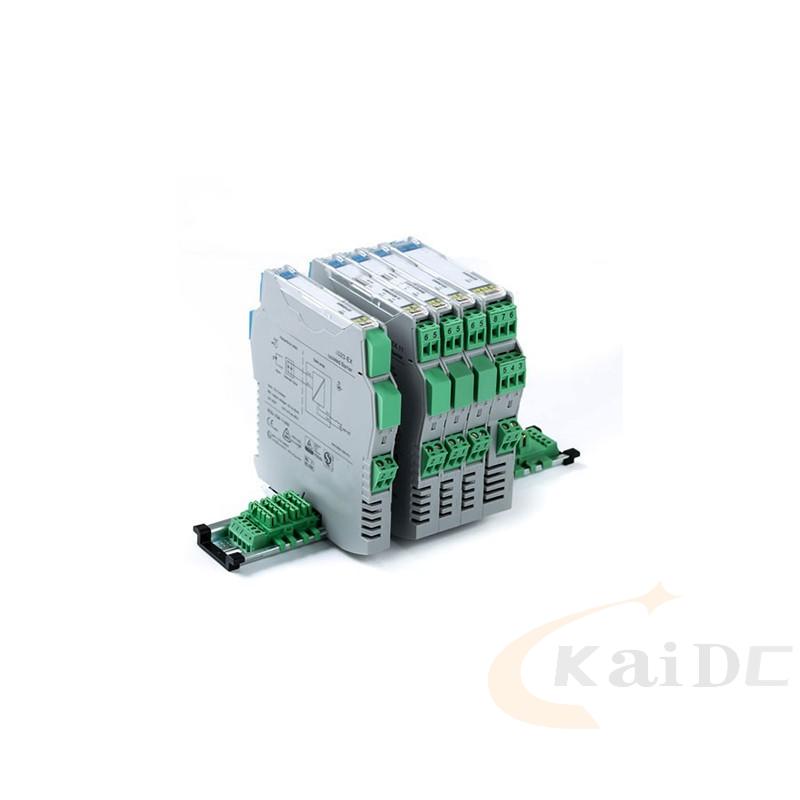

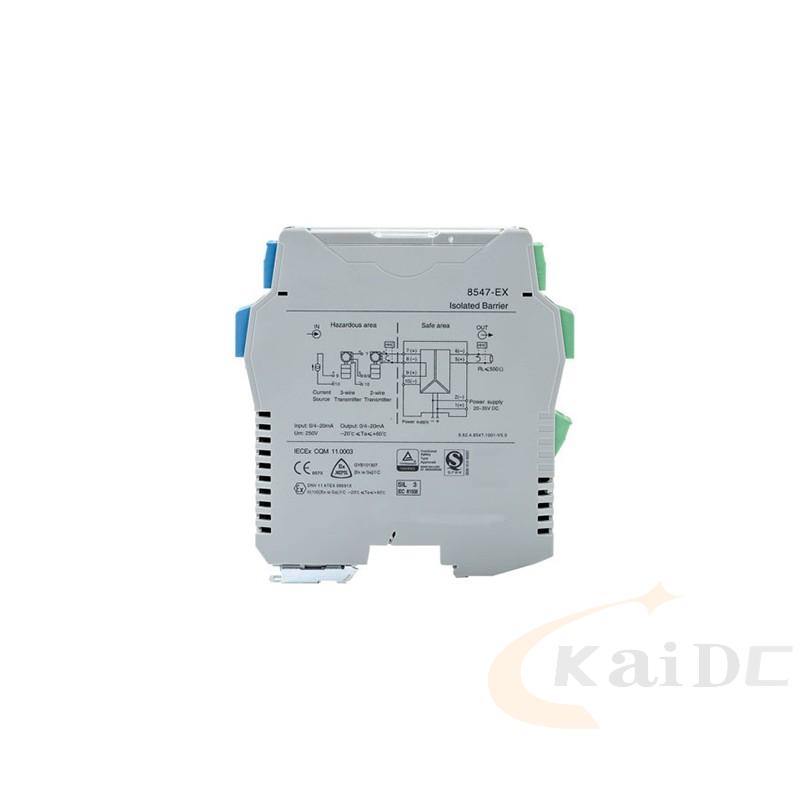

KD8547-EX 1 input 1 output Analog Input Isolated Barrier

KD8547-EX 1 input 1 output Analog Input Isolated Barrier

2-wire HART transmitter, 3-wire transmitter, current source input isolated barrier, provide isolated power supplies for transmitters which located in hazardous area. Transfer 4~20mA signal(or current source signal) which generated by the transmitter from hazardous area to safe area separately, also allows bi-directional transmission of HART communication signals. The product should be supplied power independently. Input, output and power are each galvanically isolated.
Number of channels: 1input/1output
Input signal: 0/4~20mA
power distribution: 15.5V/20mA
Output signal: 0/4~20mA or0/1~5V
Power Supply Mode: 24VDC
Power Connection Mode: Terminal Power Supply or Bus Power Supply
SIL Level: SIL3
HART: Support

Product Name	KD8547-EX Isolated Barrier
Number of channels	1 input/1 output
Supply voltage(Ue)	20~35V DC
Input signal	0~20mA;4~20mA;HART
Output signal	0~20mA;4~20mA;HART;0~5V;1~5V
Ex-marking	[Ex ia Ga]IIC
Certification	IECEx;NEPSI;TUV SIL3
Field apparatus	2-wire HART transmitter,3-wire transmitter, current source

FAQ

Q: What information should I provide before order?

A: Please confirm the input data, output data and another function you need.

Q: How long is your warranty period?

A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.

Q: Are you trading company or manufacturer ?

A: We are manufacturer, providing own brand product and also ODM/OEM services.

Q: How long is your delivery time?

A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.

Q: What is your terms of payment ?

A: 100% T/T in advance.
