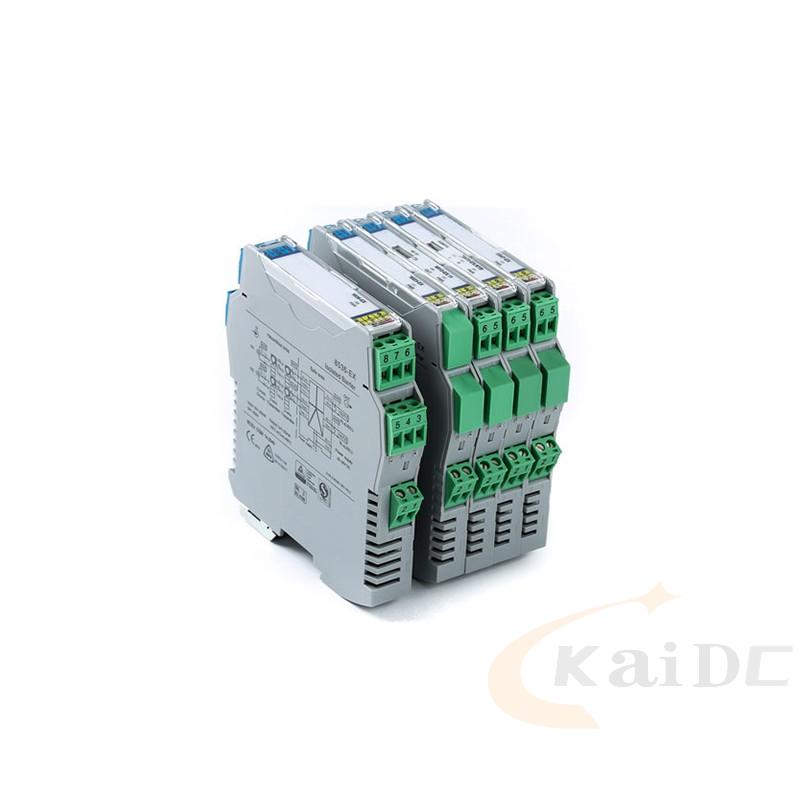

KD8536-EX 2 input 2 output Analog Input Isolated Barrier

Intrinsically Safe Isolator: 2-wire HART transmitter, 3-wire transmitter, current source input isolated barrier(2 channels), provide isolated dc supplies for transmitters which located in hazardous area. Transfer 4~20mA signal((or current source signal)) which generated by the transmitter form hazardous area to safe area separately, also allows bi–directional transmission of HART communication signals. The product needs an independent power supply.Input circuit,output circuit and power supply are each galvanically isolated.

Number of channels: 2inputs/2outputs
Input signal: 0/4~20mA
power distribution: 15.5V/20mA
Output signal: 0/4~20mA or 0/1~5V
Power Supply Mode: 24VDC
Power Connection Mode: Terminal Power SupplyorBus Power Supply
SIL Level: SIL2
HART: Support

Product Name	KD8536-EX Isolated Barrier
Number of channels	2 input/2 outputs
Supply voltage(Ue)	20~35V DC
Input signal	0~20mA;4~20mA;HART
Output signal	0~20mA;4~20mA;HART;0~5V;1~5V
Ex-marking	[Ex ia Ga]IIC
Certification	ATEX;IECEx;NEPSI;TUV SIL2
Field apparatus	2-wire HART transmitter,3-wire transmitter, current source

FAQ

Q: What information should I provide before order?

A: Please confirm the input data, output data and another function you need.

Q: How long is your warranty period?

A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.

Q: Are you trading company or manufacturer ?

A: We are manufacturer, providing own brand product and also ODM/OEM services.

Q: How long is your delivery time?

A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.

Q: What is your terms of payment ?

A: 100% T/T in advance.
