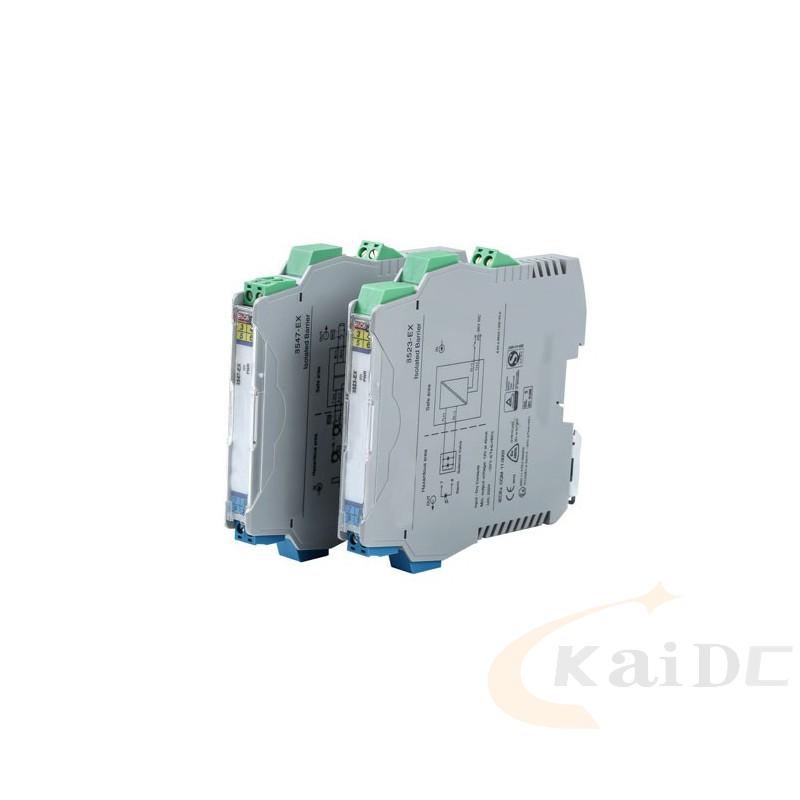

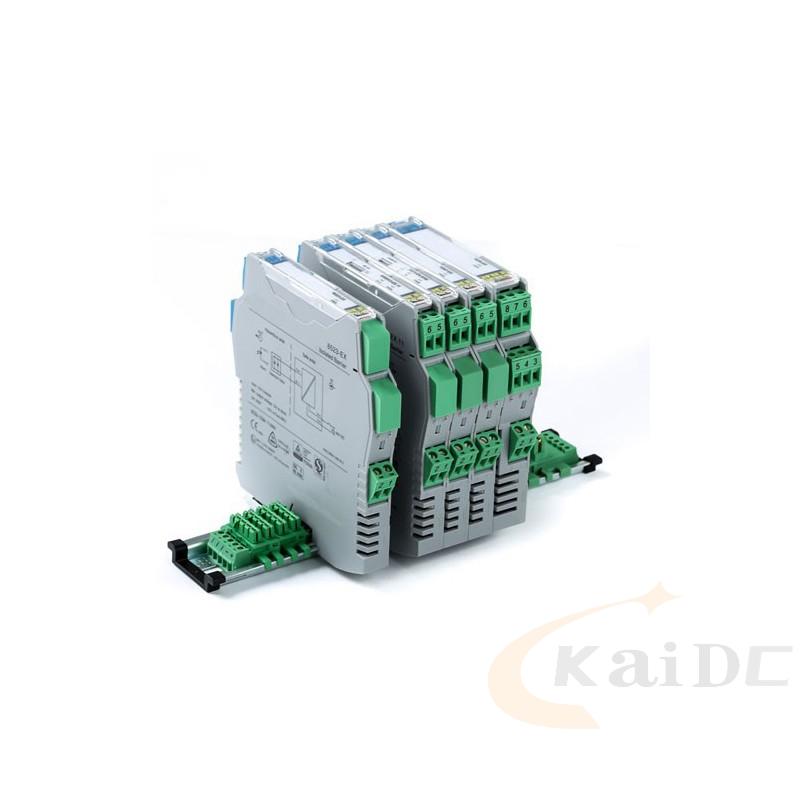

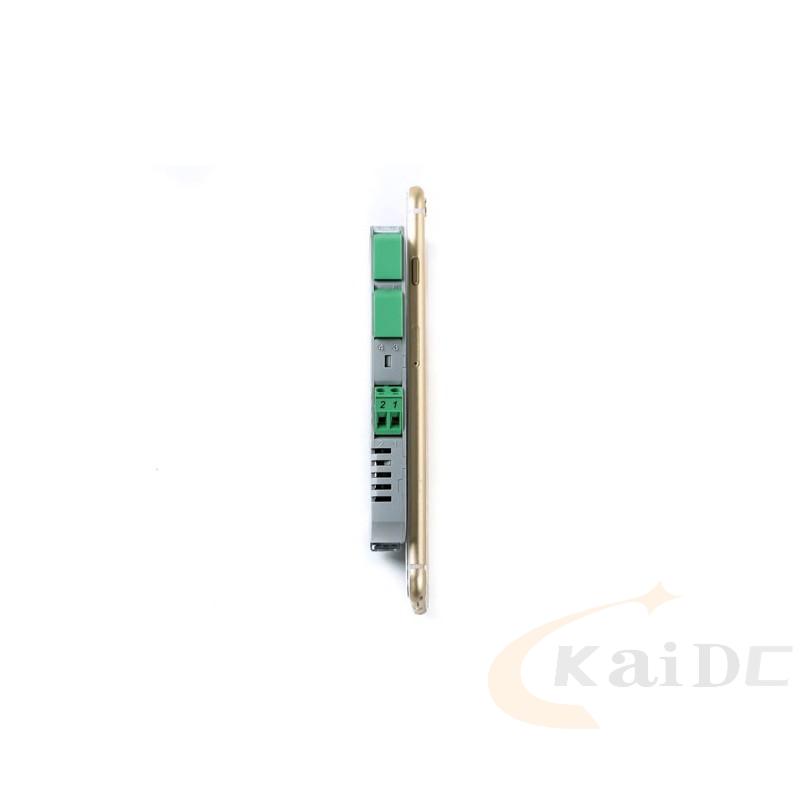

KD8535-EX 1 input 2 output Analog Input Isolated Barrier

KD8535-EX 1 input 2 output Analog Input Isolated Barrier

Intrinsically Safe Isolator: 2-wire HART transmitter, 3-wire transmitter, current source input isolated barrier(1 input, 2 outputs), provide isolated dc supplies for transmitters which located in hazardous area. Transfer 4~20mA signal(or current source signal) which generated by the transmitter form hazardous area to safe area separately, also allows bi–directional transmission of HART communication signals . The product needs an independent power supply.Input circuit,output circuit and power supply are each galvanically isolated.

Number of channels: 1input/2outputs
Input signal: 0/4~20mA
power distribution: 15.5V/20mA
Output signal: 0/4~20mA or 0/1~5V
Power Supply Mode: 24VDC
Power Connection Mode: Terminal Power Supply or Bus Power Supply
SIL Level: SIL2
HART: Support

Product Name	KD8535-EX Isolated Barrier
Number of channels	1 input/2 outputs
Supply voltage(Ue)	20~35V DC
Input signal	0~20mA;4~20mA;HART
Output signal	0~20mA;4~20mA;HART;0~5V;1~5V
Ex-marking	[Ex ia Ga]IIC
Certification	ATEX;IECEx;NEPSI;TUV SIL2
Field apparatus	2-wire HART transmitter,3-wire transmitter, current source

FAQ

Q: What information should I provide before order?

A: Please confirm the input data, output data and another function you need.

Q: How long is your warranty period?

A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.

Q: Are you trading company or manufacturer ?

A: We are manufacturer, providing own brand product and also ODM/OEM services.

Q: How long is your delivery time?

A: ≤ 20 pcs, generally it is 7 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.

Q: What is your terms of payment ?

A: 100% T/T in advance.
